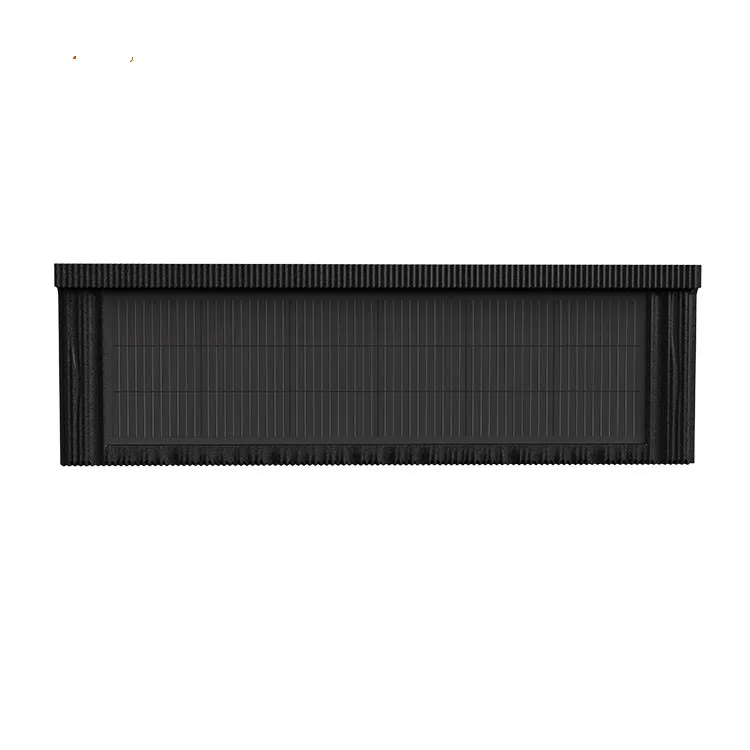

Black Solar aesthetic metal tile kit L series solar tile
T max tile L series solar tile is made of stone coated roof tile and
photovoltaic modules.The latest green building material achieved
zero-carbon roof construction.
- Information
- Download
There may be some differences in performance and application of PV tiles of different colors, here are some common colors of the T MAX series
Black solar roof tiles
Black is the most common color of solar roof tiles, which is made of monocrystalline silicon for high efficiency and stability. They are capable of producing high electrical energy output under different lighting conditions and exhibit good performance in high-temperature environments.
BLACK | |||||
T MAX O | T MAX L | T MAX A | T MAX R | T MAX S | |
Power output | 90W | 80W | 90W | 55W | 30W |
Module efficiency | 18.90% | 17.80% | 18.90% | 17.8% | 15% |
Voltage at Pmax | 13.7V | 10.3V | 13.7V | 10.3V | 6.36V |
Peak power current | 6.57A | 5.44A | 6.57A | 5.44A | 4.72A |
Open-circuit current | 16.3V | 6.6V | 16.3V | 6.6V | 7.95V |
Short-circuit current | 6.89A | 12.3A | 6.89A | 12.3A | 4.95A |
Dimensions | 1340*420mm | 1340*420mm | 1200*430mm | 1340*420mm | 586*400mm |
Weight | 15.5kg | 6.8kg | 9.5kg | 6.8kg | 5kg |
Glass (material/thickness) | Tempered glass/3.2mm+Backplane | ||||
Solar cells | Monocrystalline | ||||
The main advantage of black solar roof tiles is aesthetics, especially for certain architectural or design projects, black PV panels are better integrated into the building's exterior, providing a more consistent and seamless look.
 | T MAX O PHYSICAL PARAMETERS | |
| Product model | JS90DG-13e 1/2 | |
| Dimensions | 1260*480mmm | |
| Weight | 15.5kg | |
| Glass (material/thickness) | Tempered glass/3.2mm+3.2mm | |
| Cell | 182*91mm（2*12） | |
| Junction box | ≥IP67 | |
| Cable type | 900mm / 4mm² | |
| Plug connector | MC4 | |
| Life span | >30years | |
| ELECTRICAL PARAMETERS(STC) | ||
| Solar cells | Monocrystalline | |
| Power output（Pmax ） | 90W | |
| Module efficiency（%） | 18.90% | |
| Voltage at Pmax（V mpp） | 13.7V | |
| Current at Pmax（I mpp） | 6.57A | |
| Open-circuit current（Voc） | 16.3V | |
| Short-circuit current（Isc） | 6.89A | |
 | T MAX L PHYSICAL PARAMETERS | |
| Color | Black | |
| Dimensions | 1340*420mm | |
| Weight | 6.8kg | |
| Glass (material/thickness) | Tempered glass/3.2mm+3.2mm | |
| Cell | 182*91mm（3*6） | |
| Junction box | ≥IP67 | |
| Cable type | 500mm / 4mm² | |
| Plug connector | MC4 | |
| Life span | >30years | |
| ELECTRICAL PARAMETERS(STC) | ||
| Solar cells | Monocrystalline | |
| Power output（Pmax ） | 80W | |
| Module efficiency（%） | 19.40% | |
| Voltage at Pmax（V mpp） | 14.7V | |
| Current at Pmax（I mpp） | 5.44A | |
| Open-circuit current（Voc） | 17.7V | |
| Short-circuit current（Isc） | 5.71A | |
 | T MAX A PHYSICAL PARAMETERS | |
| Product model | JS90DG-12e 1/2 | |
| Dimensions | 1200*430mm | |
| Weight | 9.5kg | |
| Glass (material/thickness) | Tempered glass/3.2mm+3.2mm | |
| Cell | 182*91mm（2*12） | |
| Junction box | ≥IP67 | |
| Cable type | 500mm / 4mm² | |
| Plug connector | MC4 | |
| Life span | >30years | |
| ELECTRICAL PARAMETERS(STC) | ||
| Solar cells | Monocrystalline | |
| Power output（Pmax ） | 90W | |
| Module efficiency（%） | 17.40% | |
| Voltage at Pmax（V mpp） | 13.7V | |
| Current at Pmax（I mpp） | 6.57A | |
| Open-circuit current（Voc） | 16.3V | |
| Short-circuit current（Isc） | 6.89A | |

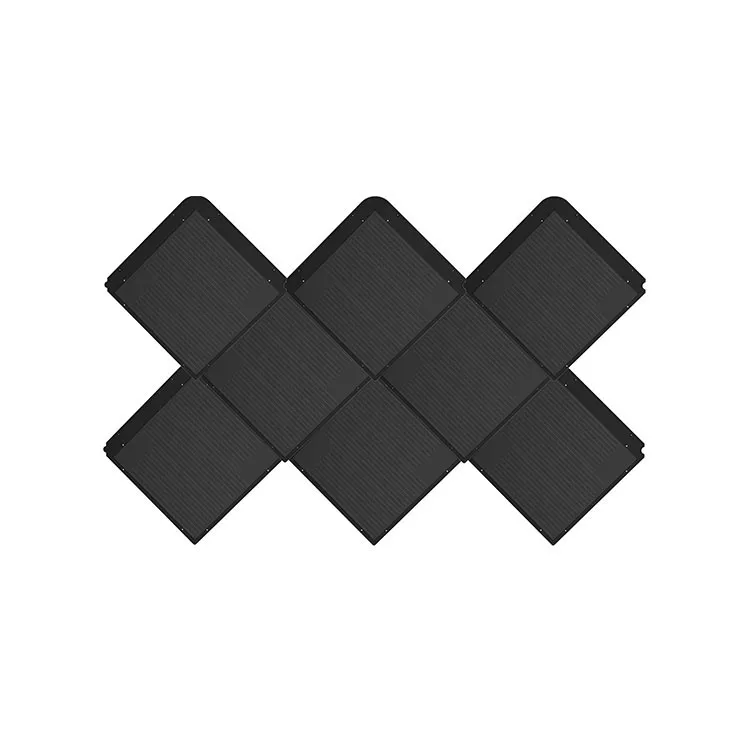

 | T MAX R PHYSICAL PARAMETERS | |
| Product model | JS55DG-8e 1/2 | |
| Dimensions | 700*700mm | |
| Weight | 10.5kg | |
| Glass (material/thickness) | Tempered glass/3.2mm+3.2mm | |
| Cell | 182*91mm | |
| Junction box | ≥IP67 | |
| Cable type | 500mm / 4mm² | |
| Plug connector | MC4 | |
| Life span | >30years | |
| ELECTRICAL PARAMETERS(STC) | ||
| Solar cells | Monocrystalline | |
| Power output（Pmax ） | 55W | |
| Module efficiency（%） | 15.40% | |
| Voltage at Pmax（Vmpp） | 8.90V | |
| Current at Pmax（I mpp） | 6.18A | |
| Open-circuit current（Voc） | 10.59V | |
| Short-circuit current（Isc） | 6.54A | |
 | T MAX S PHYSICAL PARAMETERS | |
| Product model | JS30DG-6b1/2 | |
| Color | Black | |
| Dimensions | 586*400mm | |
| Weight | 5kg | |
| Glass (material ythickness) | Tempered glass/3.2mm+3.2mm | |
| Junction box | ≥IP67 | |
| Cable type | 300mm j 4mm? /Customizable | |
| Plug connector | MC4 | |
| Life span | >30years | |
| ELECTRICAL PARAMETERS（STC) | ||
| Solar cells | Monocrystalline | |
| Power output( Pmax) | 30W | |
| Module efficiency（%) | 12.90% | |
| Voltage at Pmax（Vmpp） | 6.36V | |
| Current at Pmax (Lmpp) | 4.72A | |
| Open-circuit current (Voc) | 7.95V | |
| Short-circuit current (Lsc) | 4.95A | |
Although solar roof tiles of different colors may have certain advantages and have an impact in practical applications. When choosing photovoltaic tiles, it is more important to consider their overall quality, efficiency, reliability and cost to meet specific project needs.
